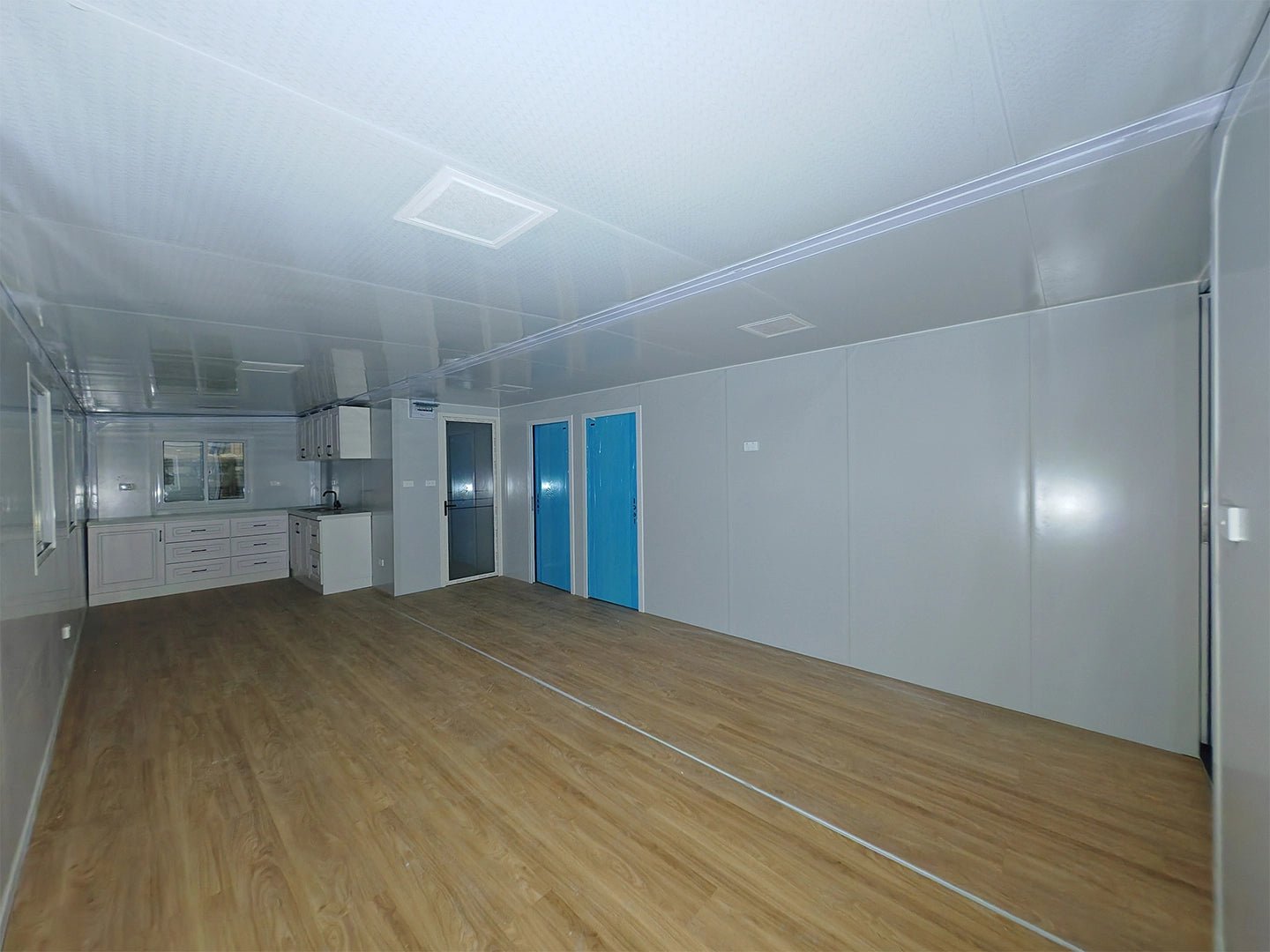

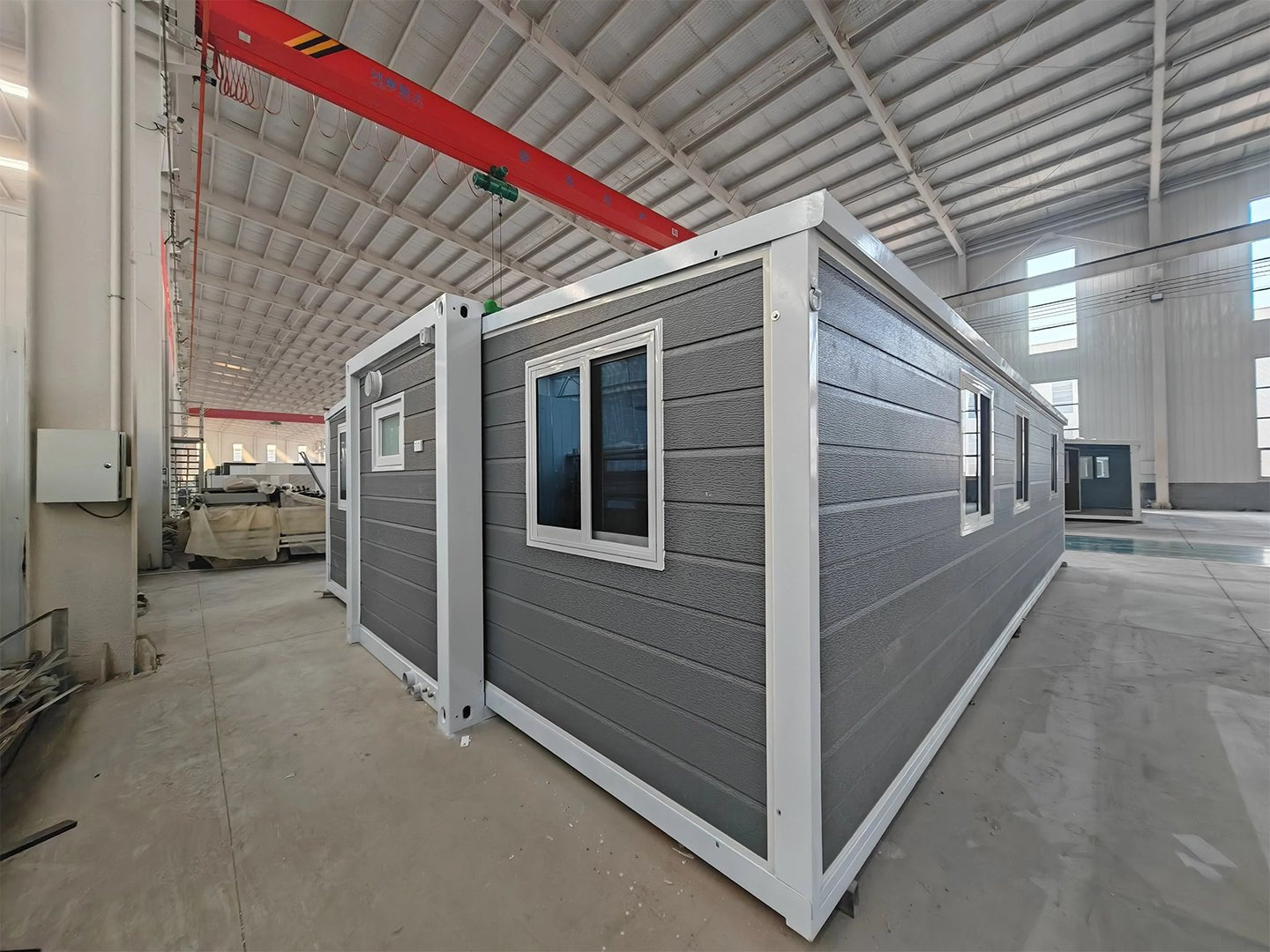

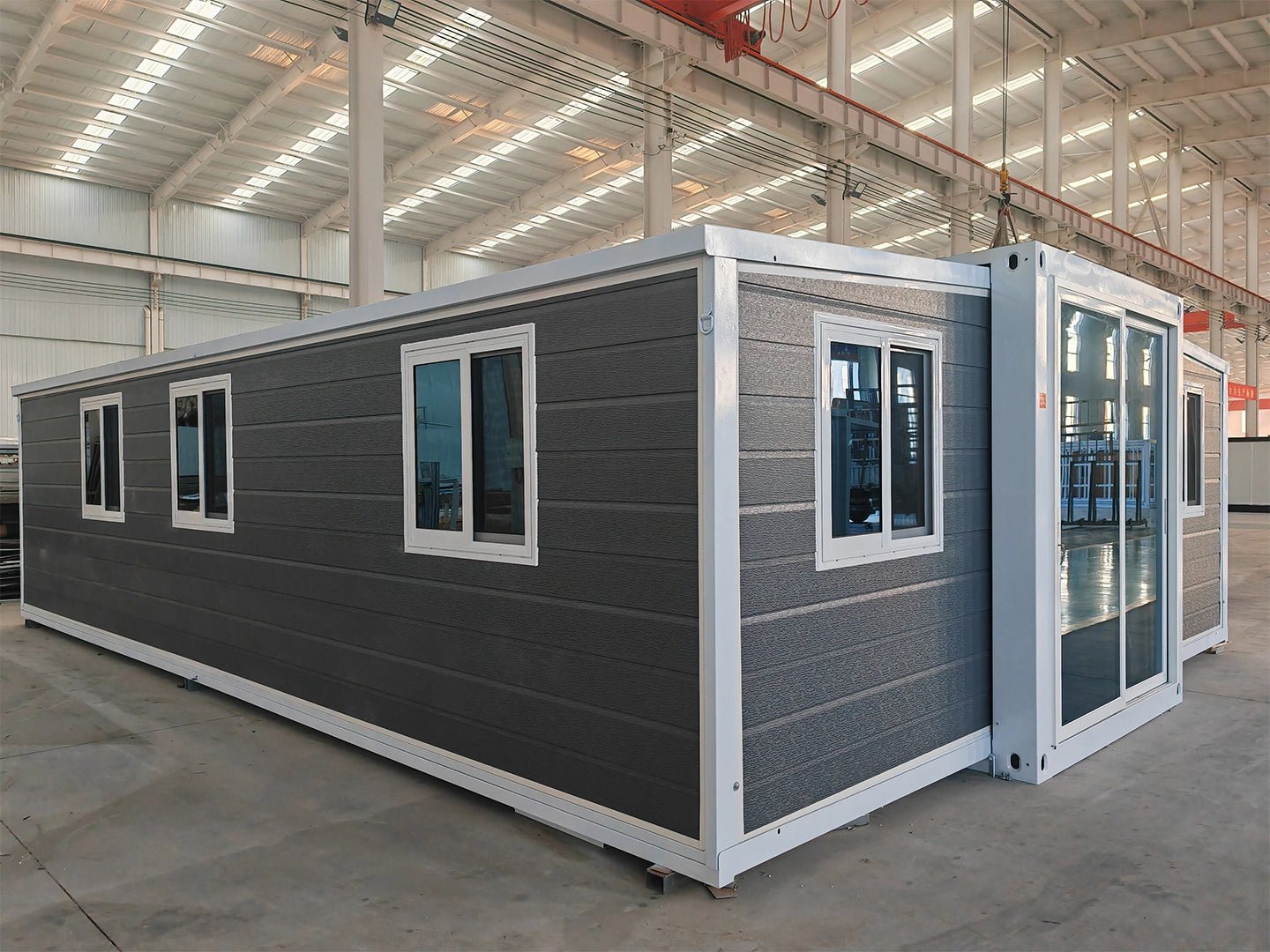

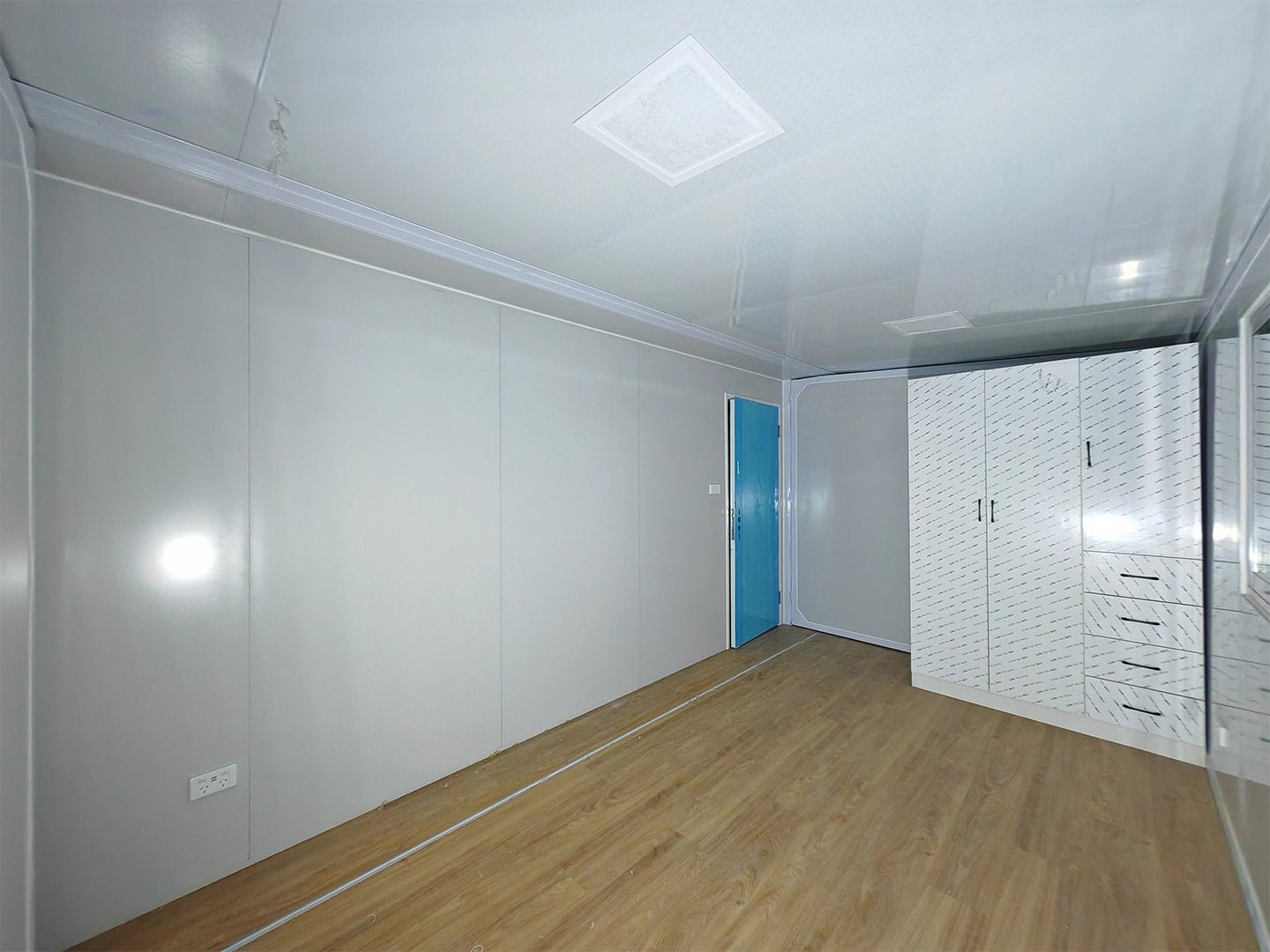

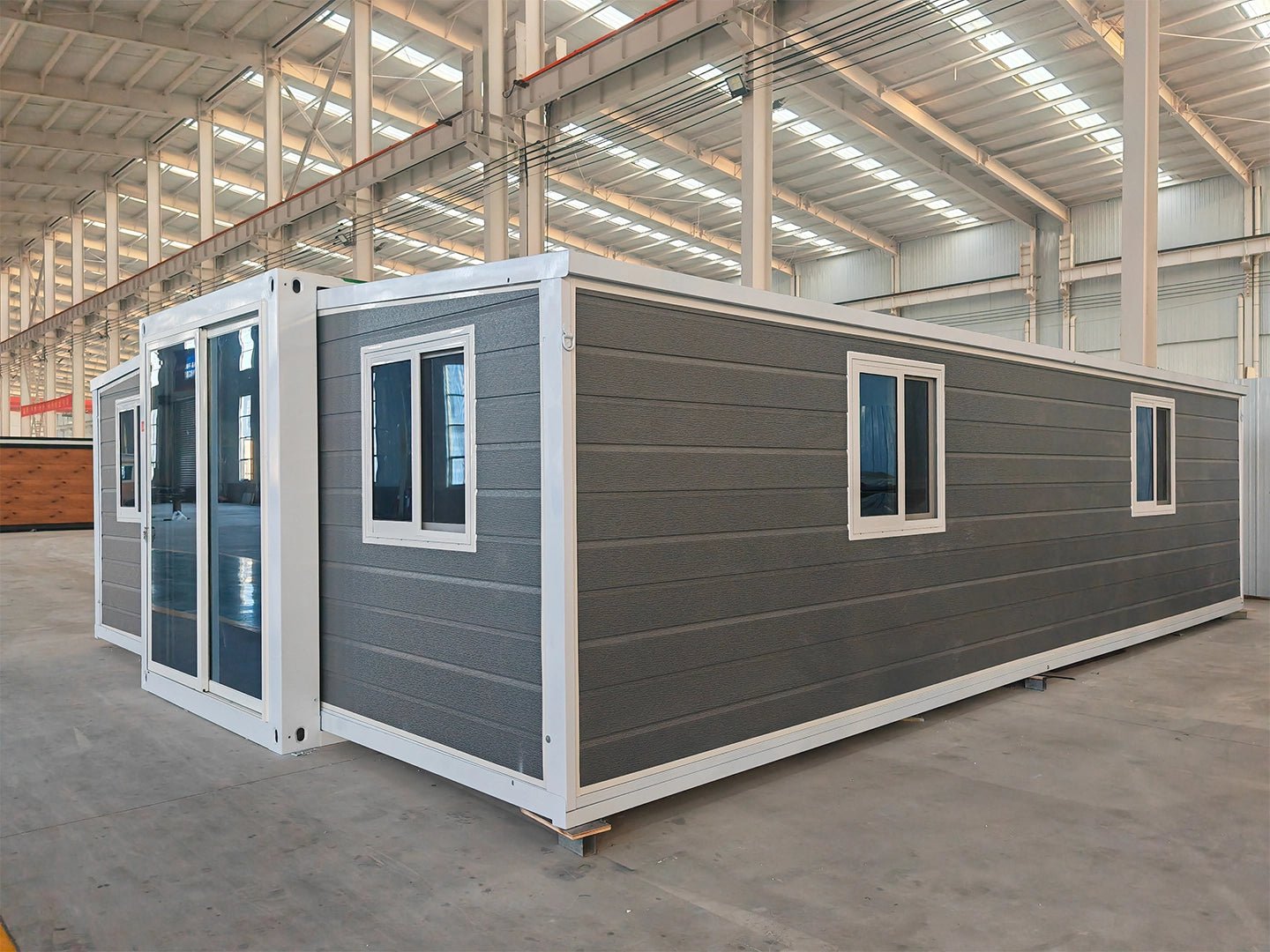

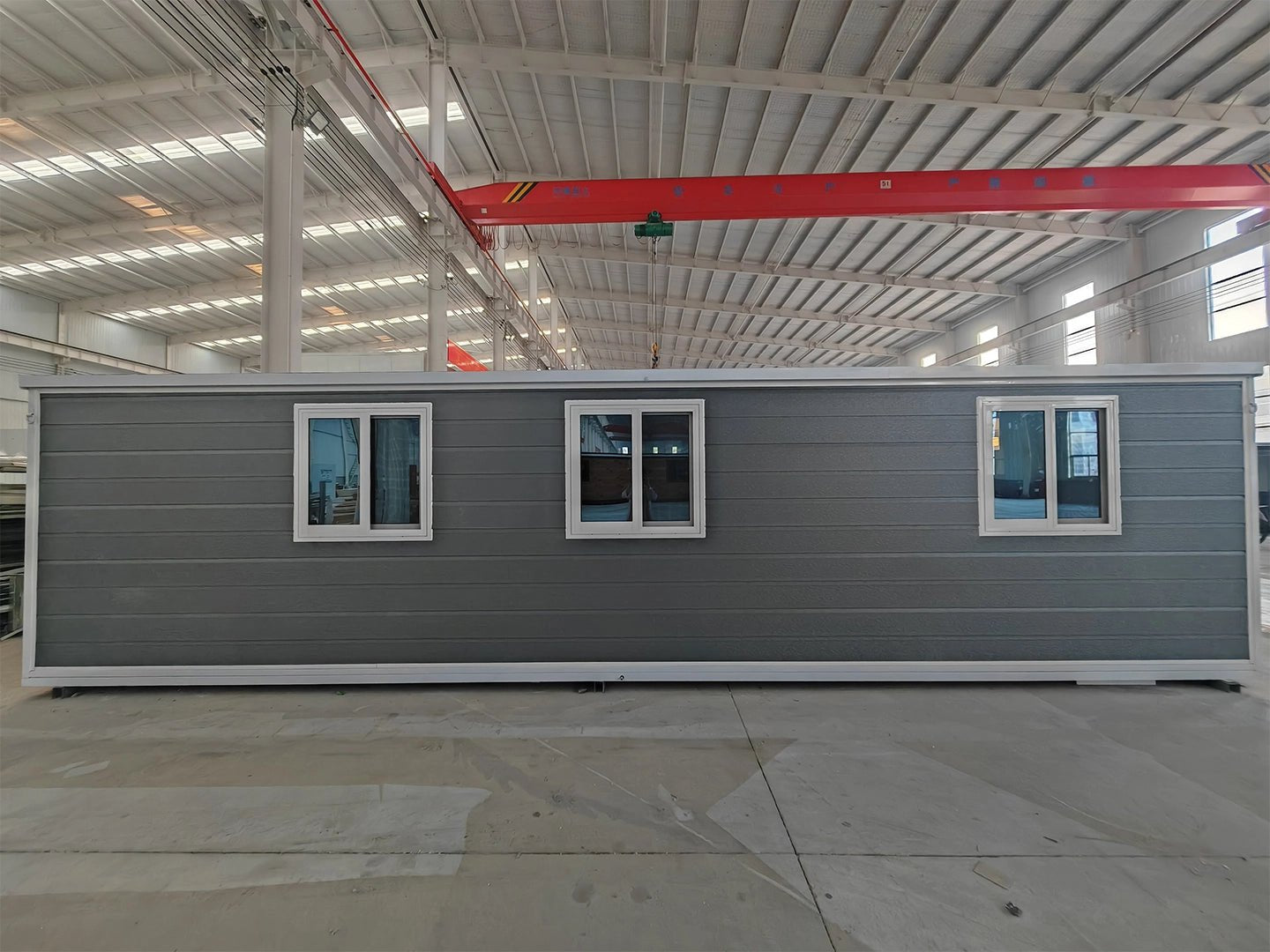

Featuring 2 bedrooms, 1 bathroom, and 1 kitchen, the 30ft expandable house is an excellent choice for secondary accommodation or a granny flat. It offers spacious living experience.
Features
Dimension
External Dimensions (mm): 5900W*9000L*2480H
Folded Dimensions (mm): 2200W*9000L*2480H
Wall Panels
Total 65mm (50mm EPS Insulation Board Plus 15mm Cladding board)
Flooring
This 18mm magnesium sub floor concrete composite is resistant to water, rot, and insects.
Additional 3mm SPC luxury timber style surface floor is above.
PVC cornice and skirting
Entrance Door & Windows
Broken Bridge Aluminum door
Broken Bridged Aluminium framed windows
Double glazed with 5mm thick glass
Flyscreens on all windows
Coated glass windows to protect privacy
Bathroom
3mm SPC floor
Full room width shower on marble look shower base with a rain maker shower head, and toughened glass sliding door
Vanity with porcelain sink, chrome flick mixers
S-trap toilet with soft closing lid
Marble-patterned PVC wall paneling with an integrated shaving cabinet and mirror.

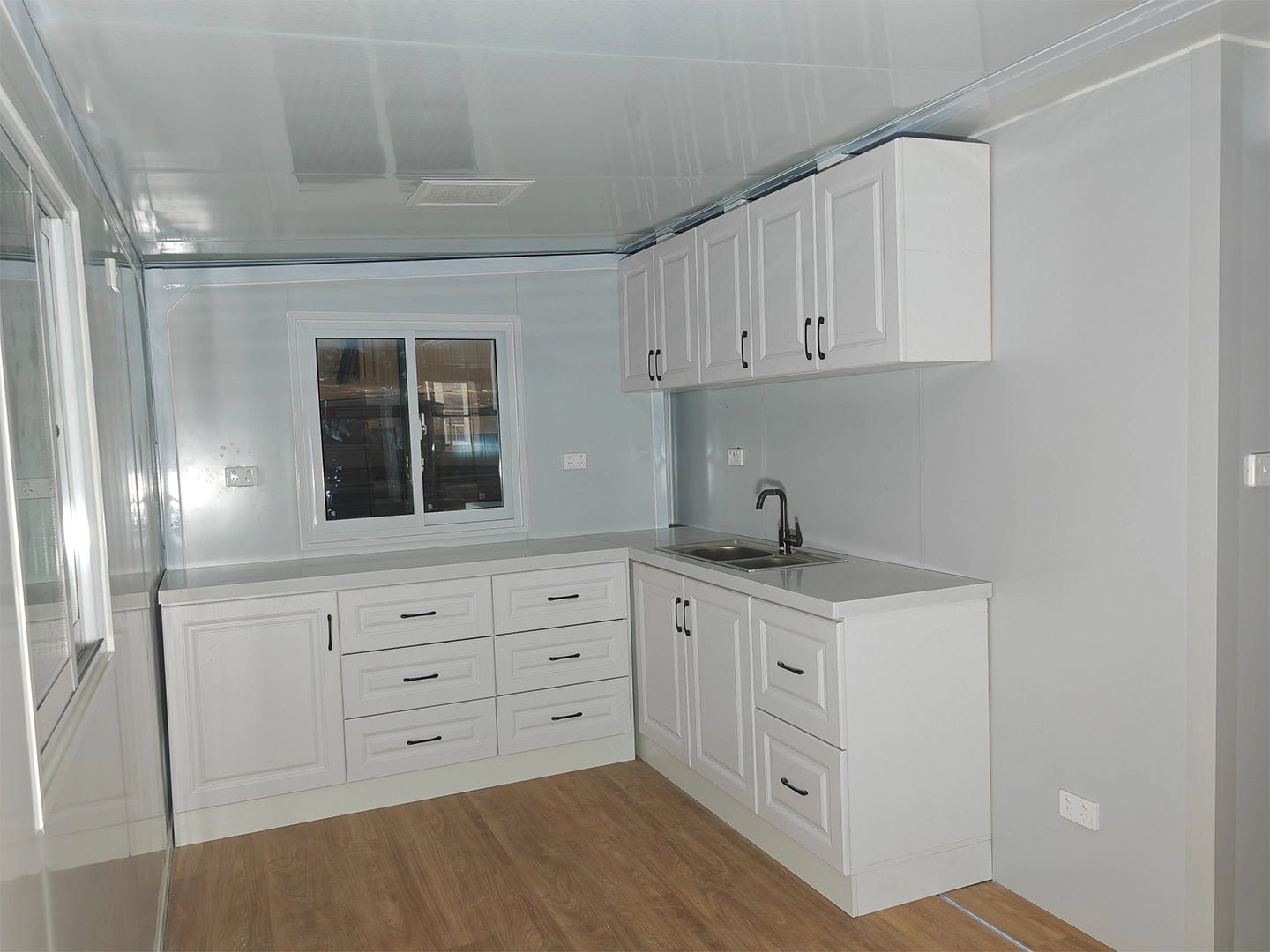

Kitchen
900mm height kitchen L type cabinet
Double bowl stainless steel sink with flip mixer
20mm Quartz stone bench top
The kitchen is fully installed and ready for use upon connection to utilities.
Plumbing
Plumbing system including pipes, drainage pipes, and copper fittings that comply with Australian standards.

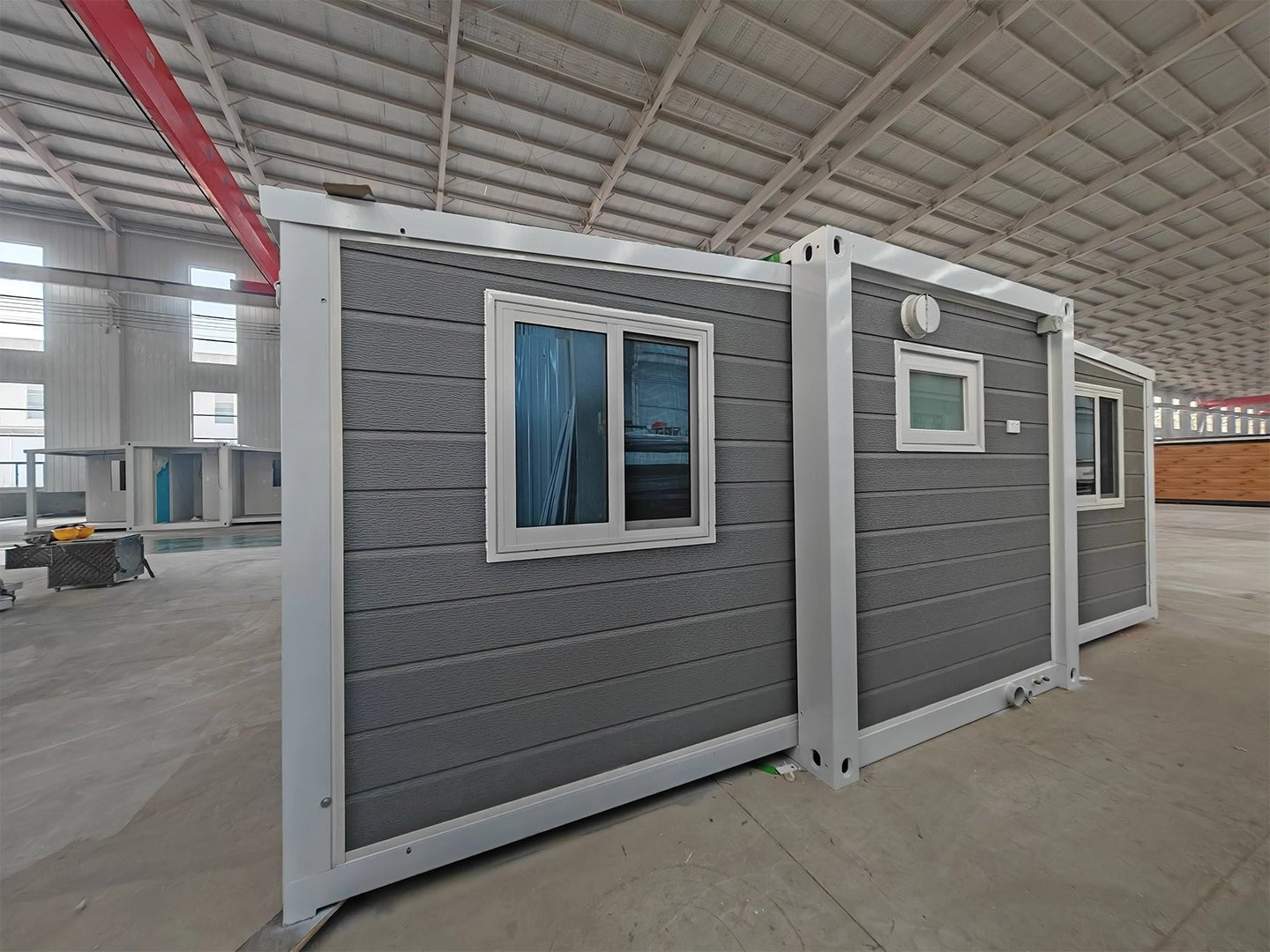

All plumbing connections are on the external bathroom wall
Black water: 100mm connection
Grey water: 50mm connection
Hot/Cold water: ½ inch nipple require to connect hose (poly pipe)
Electricity system
Electricity equipped with RCDs, switches, sockets, air circuit breakers, and wires that comply AS 3000:2007 with SAA/CE/UL certificate.
Installation
Installation/set-up can be completed DIY way by the customer.
Setup typically takes 2-3 people approximately 2 days to complete.
Local plumber and electrician services will be required for connections.
A detailed step-by-step manual is included, and a dedicated phone number is available for setup assistance.
